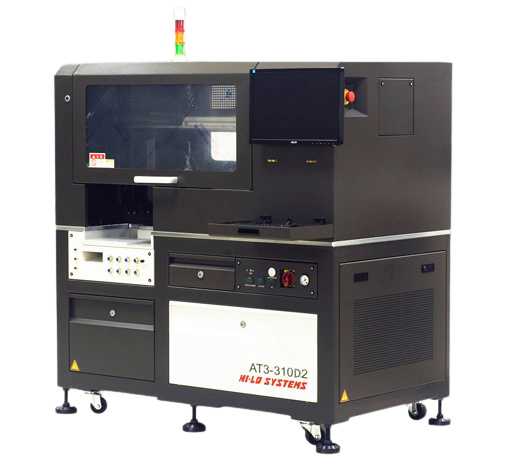

AT3-310D2 Automated Programming System

  • Best option for high-mix, low-volume production
  • Customized specification and configuration of system to deliver the best production scale cost-effectively

Feature

Excellent performance
  • Up to 2200 UPH with 2 nozzles
  • Equipped with 2 units of ALL-200G or ALL-300G2 programmers, 16-32 devices can be programmed simultaneously
  • Minimize the jam rate as well as the possibility of lead bent during handling
  • Capable of handling as small as 1.5mm x 1.5mm devices such as WLCSP
Support wide range of IC devices and packages
  • Device supported: UFS, eMMC, eMCP, MCU/MPU, NOR/NAND Flash EEPROM, SPI Memory, FPGA, CPLD, etc.
  • Package supported: DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA, WLCSP, etc.
Precise vision positioning system
  • Arm camera (1.3M pixels) for socket positioning
  • Fixed camera (3M pixels) for IC pick & place positioning
  • Optional AOI for 2D/3D inspection of IC appearance
Smart operating software
  • All setup data such as IC type, socket type, and position are saved automatically to achieve zero changeover time
  • User friendly operating interface minimize the possibility of misoperation
  • Provides detailed information of machine status, production status, warning, etc.
  • Detailed production reports and log files are saved for traceability
Intelligent function setup
  • Laser displacement sensor: Automated height calibration of picking IC (Z-axis)
  • Automated IC pick & place positioning reduces the changeover time to 15 minutes or less
HiLoNET (MES)
  • One-Click Start: Operators can start production simply by scanning the barcode, significantly eliminating human errors
  • E-Board: Visualize and update production statistics (Yield rate, UPH, the condition of sockets, etc.) promptly for management to track anytime
  • Program Track System(PTS): Completely record every order from end to end throughout the production process and provide valid statistics for management, realizing statistical process control (SPC)
Flexible I/O options
  • Support package conversion between tape, tray, and tube

I/O Devices/Optional

I/O Devices
product
Auto tray - 535M
product
Tape-out - 512M
product
Tape-in
product
Tube-in/Tube-out
Optional
product
Mark-346
product
Inkjet-373
product
Laser Marker
product
2D/3D
Inspection System

Programmer Core

ALL-300G2 Core

New generation high-performance core:

New design of high-performance hardware, provides high speed and quality on UFS, eMMC and high density NAND Flash programming.

  • Support all of latest IC devices and over 95% of MCU IC in market
  • Full IC pin contact check prevents bad contact in socket or IC damage from reversed placement
  • Outstanding speed: Program function delivers 230MB/s and Verify function delivers 880MB/s
ALL-200G Core

The innovative programming core circuit design significantly cuts down programming time of high density memory products, providing high speed, low noise, accurate and reliable programming.

  • Support over 95% of current MCU IC and counting
  • Includes 56 x 8 sets of Precise Universal Pin Driver, each site owns individual Pin Driver so sites are totally independent without interfering each other during multi-site programming
  • 16 bits high freq. core control circuit with high performance FPGA & CPLD
  • Provide high quality programming signals for high speed low power (1.8V) devices

Since 1983, Hi-Lo has dedicated ourselves to providing cost-effective, reliable IC programming and testing solutions. Through decades of hard work, Hi-Lo has successfully achieved a significant market share in the programming industry and served customers in more than 40 countries around the world.

Nowadays, Hi-Lo has caught up with trends of EV and IoT technologies with innovative programming technology and unparalleled solution portfolio. Affirming our leading position in the industry, Hi-Lo has built a worldwide programming network, assisting our customers regardless of the industry or the location.



Automotive electronics

Hi-Lo has been authorized and trusted by numerous automotive companies for our unparalleled programming performance in automotive electronics and our completed and worldwide support!

The application of semiconductors is exploding when attached to automotive industries. For example, an EV requires various microcontrollers, processers to perform in-time communication and control among internal devices such as engines, brakes, wheels, etc. Moreover, an EV needs to be equipped with latest high-density devices such as eMMC and UFS to deliver an innovative In-Vehicle Infotainment system, optimizing the consumer experience in driving. Consequently, an EV is estimated to equip with at least 150 chips, creating annual demand for over a billion devices to program and given a function.

Hi-Lo recognizes from the experience that all automotive devices shall be programmed with unyielding precision. As a result, Hi-Lo is the only supplier that develops an exclusive automated programming system with inside 3D quality inspection for automotive electronics - AT3-370AL. AT3-370AL is specially designed to satisfy strict requirements, and now, it is the designated and authorized programming solution for most suppliers of automotive electronics.



IoT technology

Building a smart city is the ultimate and unanimous goal for numerous leaders around the world. Governments aspire to improve the efficiency and safety of establishing infrastructure in cities with the power of IoT technology.

Take self-driving technology in a smart city for example, the capability to download, process, and store navigation data promptly is substantially necessary. An ideal smart city allows in-time interaction between vehicles and traffic signals and make adjustment accordingly. To be more specific, processing of navigation information, latest traffic conditions as example, gathered from traffic signals can be transmitted to vehicles, allowing recalibration for the optimized routes in timely manner.

Consequently, the significant demand for latest high density devices such as UFS, eMMC are substantially necessary to complete smart cities. Foreseeing such trends, Hi-Lo has developed the innovative programming core in ALL-300 series for such devices, delivering the excelling programming performance of stability and averagely 400 percent faster than other brands.



Consumer electronics

Consumer electronics is one of the application of chips that influence the most widespread and deepest. Supply chains of smartphones, laptops, wearable devices, and home automation contribute giant business worth hundreds of billions dollars.

The competition for such business is fierce. However, to keep the leading positions of our customers in market and solidify their technology barrier, Hi-Lo innovates ourselves in IC programming technology and launches the AT3-310 series, the flagship model of automated programming systems.

Through decades, Hi-Lo has supported more than 100,000 devices and sold over 500 sets of equipment, and successfully become the long-term supplier of IC programming for world-leading EMS, IC design companies, and automotive companies.
